R111LM DT XIDT 38-75A& 80-130B C44 15M NC

Free Shipping in UAE

Depth only
2 kW of power for outstanding deep-water performance
Low frequency: 38 to 75 kHz
- 19° to 10° port-starboard beamwidth
- 10° to 5° fore-aft beamwidth
- Maximum depth of 1829 m (6000′)
Medium frequency: 80 to 130 kHz
- 13° to 8° beamwidth
- Maximum depth of 914 m (3000′)
87 kHz of total bandwidth from one transducer
Covers popular fishing frequencies of 38, 50, 88, and 107 kHz plus everything else in the bandwidth

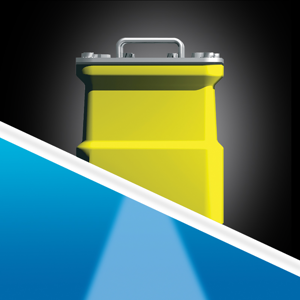

Urethane transducer housing with plastic mounting tank
Also available as thru-hull external (R109LM) and pocket/keel/welded-tank (PM111LM) mounts
Patented Xducer ID^® technology

SKU: R111C-LM-NC Categories: In- Hull, Transducers Tag: AIRMAR Brand: AIRMAR

: Cable-Length: 15 m (49′)

Common Use: Fishing, Commercial Fishing

Country of Origin: USA

Cross Reference: A80134

Deadrise Range: Up to 25° with fairing

Display Connector: No Connector

Low Frequency: 38-75 kHz

Low Frequency Beamwidth: 10°x19°-5°x10°

Max Depth: Low frequency- 1829 m (6000′), Medium frequency- 914 m (3000′)

Medium Frequency: 80-130 kHz

Medium Frequency Beamwidth: 13°-8°

Single or Dual Frequency: CHIRP-Ready Dual-Band

Tilted Element: No

Weight: 13.6 kg (30 lb.)

Power Rating: 2 kW

Frequency Band: Low-Medium

Max Deadrise Angle: 22°

Material: Urethane

Max Deadrise: Up to 22° (short side), up to 12° (long side)

Functions: Depth

Hull Material: Solid fiberglass only

Max Vessel LOA: 8 m (25′) and above

Mounting Style: In-Hull

Connector: Bare Wire
