- Depth and fast-response water-temperature sensing
- 1 kW of power for great deep-water performance from the low frequency
- Low frequency: 42 to 65 kHz
- 25° to 16° beamwidth
- Maximum depth of 914 m (3000′)
- High frequency: 150 to 250 kHz
- 25° constant beamwidth
- Maximum depth of 152 m (500′)
- 123 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
- High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
- High wide beamwidth yields more coverage for detecting fish in the upper-water column
- Stainless steel, kick-up bracket locks in the “up” position and will not damage the transom
- SEALCAST™, seamless, urethane housing for long life in the water
- Also available as thru-hull (B275LHW) and pocket (PM275LHW) mounts Patented Xducer ID® technology
-
Cable-Length: 9 m (29.5′)Common Use: Leisure/Yachting, FishingCountry of Origin: USADisplay Connector: Cable RequiredHigh Frequency: 150-250 kHzHigh-Wide Beamwidth: 25°Low Frequency: 42-65 kHzLow Frequency Beamwidth: 25°-16°Mix and Match Series: 12-Pin ChirpSensor Connector: MMCSingle or Dual Frequency: CHIRP-Ready Dual-BandTilted Element: NoWeight: 4 kg (8.9 lb.)Mounting Style: TransomFrequency Band: Low-High WidePower Rating: 1 kWHousing: Urethane/Stainless SteelMaterial: UrethaneFunctions: Depth, TemperatureMax Vessel LOA: 10 m (33′) and aboveTransom Angle: 3° to 21°Connector: Airmar 12-Pin (MMC)
Transducers, Transom Mount
TM275W Low-High Wide Chirp, 1kW, Mix and Match™ Transducer, DT
Free Shipping in UAE

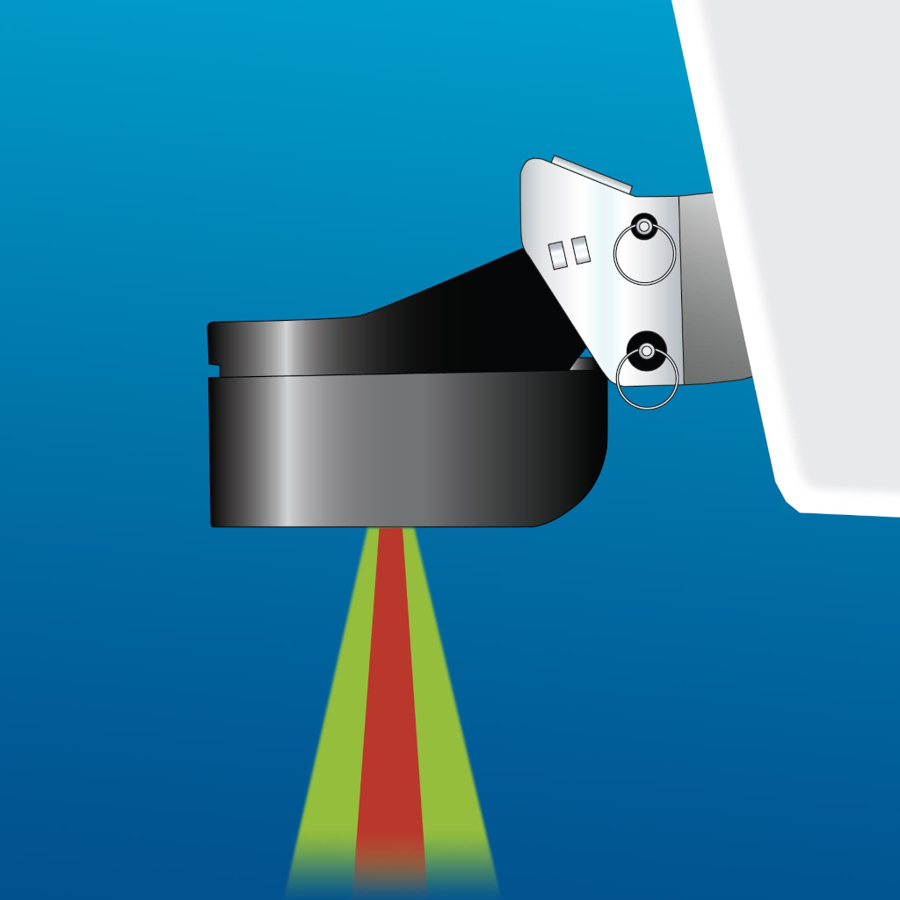

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready TM275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.
The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500′). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.
This transducer is available in two options: one with an OEM connector designed specifically for your fishfinder, and another as a Mix and Match™ Transducer version. The Mix and Match™ transducer has a 9-meter (29.5’) cable with a standard connector, plus a 1-meter (3’) adapter cable to connect it to your fishfinder.
When placing your order, make sure you know which connector type your fishfinder requires.
Available on backorder
