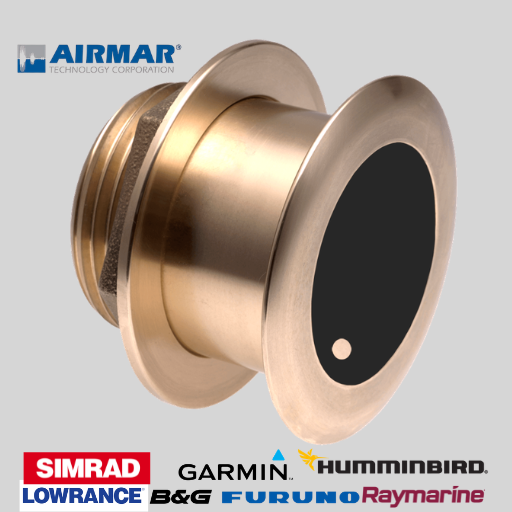

B75 High Chirp, 600W, Mix and Match™ Transducer, DT

Part #B75C-20-H-MM

MFG #41-556-2-01

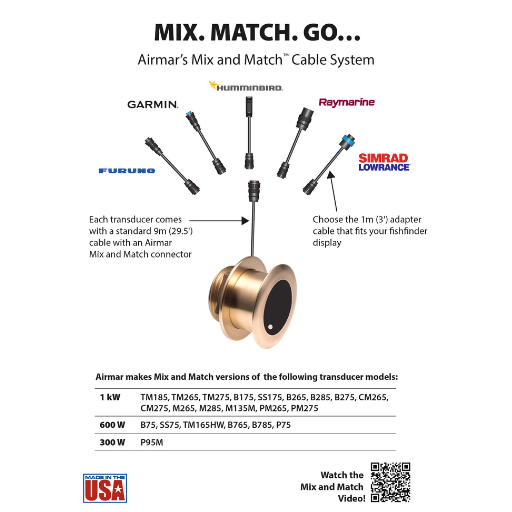

Require Mix & Match Adaptor

Features

• Depth and fast-response water-temperature sensing
• 600 W of power with a maximum depth of 214 m (700′)
• High frequency: 130 to 210 kHz
• 15° to 9° beamwidth
• High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns

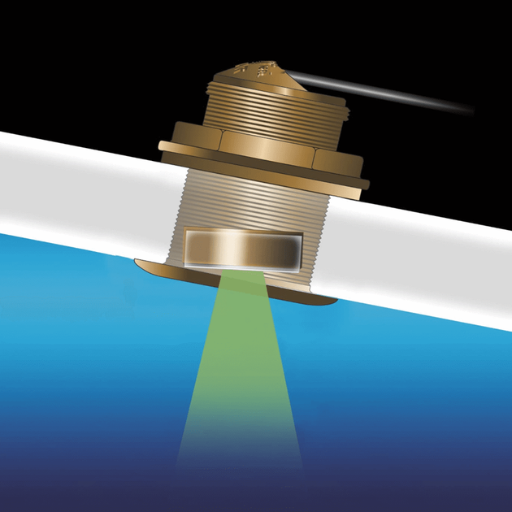

• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Bronze housing for use in a fiberglass or wood hull
• Also available in a stainless steel housing (SS75H) for use with all hull materials
• Patented Xducer ID® technology
